Deposition
Systems and Components for PLD, MBE, Magnetron Sputtering, Ion-Beam Etching, Spin Coaters, Rapid Thermal Annealing
Also: MiniMBE, Cold Atom Sources

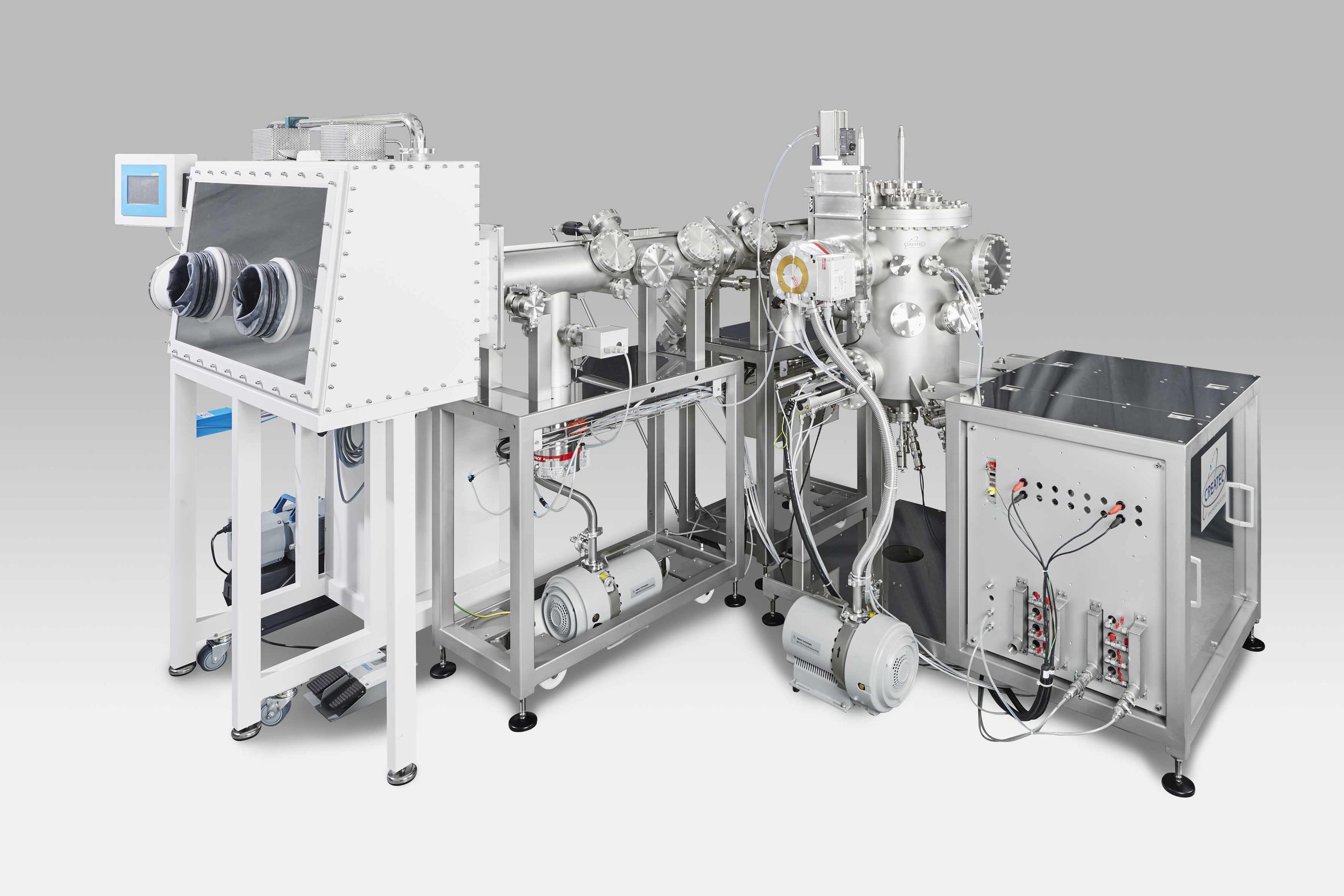

MBE Systems
We will help you design and implement complex requirements for your next Molecular Beam Epitaxy (MBE) System, even for exotic materials so that you can focus on your research.
With our MBE partner CreaTec we offer 25 years of expertise in building MBE Systems for any application you can envision. We grow with you!
MiniMBE
The CreaTec MiniMBE System is designed for epitaxial growth on small samples with a compact system size. It includes a growth chamber, load-lock chamber, and optional buffer chamber, equipped with effusion cells, a manipulator, cooling units, and optimized pumping. Key features are face-down zero force substrate transfer, linear shutters, substrate rotation, and up to 11 effusion cells. The MiniMBE System combined with LT-STM/AFM allows in-situ investigations and is adaptable to specific requirements, optimized for high-resolution measurements and long-term low-temperature spectroscopy, consuming minimal LN2 and LHe.
Sputter Deposition - 032 PRIMS
Simply and fully functional sputter deposition unit for reproducible thin film layers applying. Plug & work compact design.
The process chamber contains 3 ports for magnetron sputtering sources (for metals and inorganics), mounted in a sputter-down configuration. Up to two sources used at the same time (co-deposition) The substrate stage is intended for up to 2-inch diameter samples, with a heating & rotation option.
Semi-industrial MS systems
Semi-production HV system for fast and repeatable processes of applying thin layers with maximally automated operation support.
Process chamber design allows for a combination of several deposition techniques, among others: DC/RF magnetron sputtering, reactive sputtering, and evaporation using an electron beam. The electronics cabinet with an integrated computer equipped with a large touch screen and user-friendly software will make the coating process of your substrate smooth and easy.
Evaporators

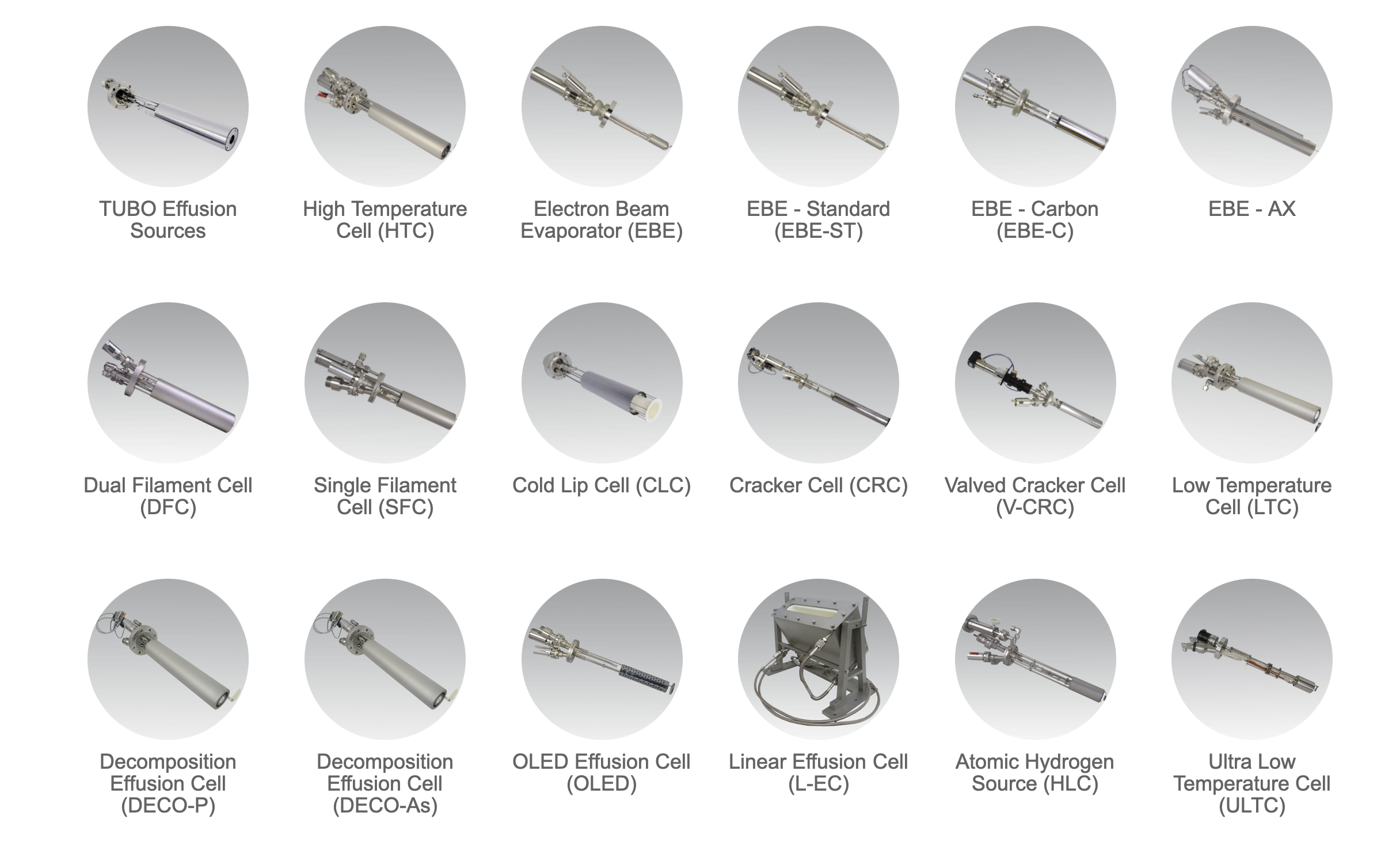

CreaTec Effusion Cells are used in ultra-high vacuum (UHV) evaporation systems to generate ultrapure molecular and atomic beams from a large variety of elements and compounds. The different types of effusion cells are manufactured to evaporate almost every material. Operating temperatures can range from: -60 °C to 2400 °C.
